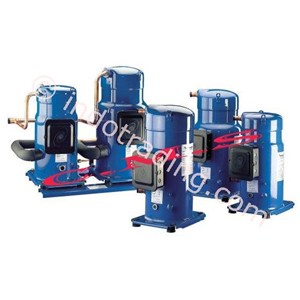

Kompressor Performer Type Sm124a4alb

Rp. CALL
Last Updated
21 Sep 2021
Minimum Order
1 unit

Specification of Kompressor Performer Type Sm124a4alb


General Characteristics

Model Number ( On Compressor Nameplate) Sm124a4alb

Code Number For Singlepack* 120H0185

Code Number For Industrial Pack* * 120H0186

Drawing Number 8560003D

Suction And Discharge Connections Brazed

Suction Connection 1-3/ 8 " Odf

Discharge Connection 7/ 8 " Odf

Oil Sight Glass Threaded

Oil Equalisation Connection 1-3/ 4' ' Rotolock

Oil Drain Connection None

Lp Gauge Port Schrader

Ipr Valve None

Swept Volume 169, 5 Cm3/ Rev

Displacement @ Nominal Speed 29.5 M3/ H @ 2900 Rpm - 35.6 M3/ H @ 3500 Rpm

Net Weight 64, 2 Kg

Oil Charge 3, 3 Litre, Mineral - 160P

Maximum System Test Pressure Low Side / High Side 25 Bar( G) / 32 Bar( G)

Maximum Differential Test Pressure 24 Bar

Maximum Number Of Starts Per Hour 12

Refrigerant Charge Limit 7, 9 Kg

Approved Refrigerants R22, R417a-160Sz

Electrical Characteristics

Nominal Voltage 380-400V/ 3/ 50Hz - 460V/ 3/ 60Hz

Voltage Range 340-440 V @ 50Hz - 414-506 V @ 60Hz

Winding Resistance ( Between Phases) + / - 7% At 25º C 1.05 #

Rated Load Amps ( Rla) 17.9 A

Maximum Continuous Current ( Mcc) 25 A

Locked Rotor Amps ( Lra) 142 A

Motor Protection Internal Overload Protector

Recommended Installation Torques

Oil Sight Glass 50 Nm

Power Connections / Earth Connection 3 Nm / 2 Nm

Mounting Bolts 15 Nm


Lihat Selengkapnya

Untuk keterangan lebih lanjut, silahkan download PDF ini :
