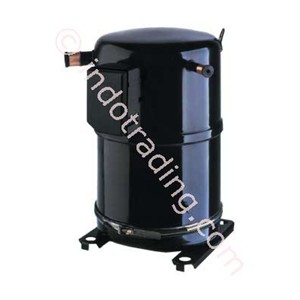

Kompressor Copeland Type Qr90m1-Tfd-501
Hover to Zoom

Sell Kompressor Copeland Type Qr90m1-Tfd-501



Specification of Kompressor Copeland Type Qr90m1-Tfd-501

Performance
-Evap( ° F) / Cond( ° F) : 45/ 130 45/ 100
-Rg( ° F) / Liq( ° F) : 65/ 115 65/ 85
-Capacity ( Btu/ Hr) : 74100 99600
-Power ( Watts) : 7600 6350
-Current ( Amps) : 13.3 11.6
-Eer ( Btu/ Wh) : 9.8 15.6
-Mass Flow ( Lbs/ Hr) : 1090 1280

Mechanical
-Overall Length ( In) : 14.25
-Overall Width ( In) : 13.25
-Overall Height ( In) : 18.44
-Mounting Length ( In) : 8.66
-Mounting Width( In) : 8.66
-Mounting Height ( In) : 18.63
-Suction Size ( In) : 1 1/ 8 Stub
-Discharge Size ( In) : 3/ 4 Stub
-Initial Oil Charge ( Oz) : 110
-Oil Recharge ( Oz) : 106
-Net Weight ( Lbs) : 175

Electrical
- Rla : 15.8
-Lra-High* : 91.1
-Lra-Half Winding :
-Lra-Low* :
-Mcc ( Amps) : 22.1
-Rpm :
-Max Operating Current :
-Ul File No.: Sa-2337
-Ul File Date : 08-Feb-1984
- Csa File No. : Lr3104c

Alternate Applications
-Refrigerant : R-22 Hcfc
-Frequency( Hz) : 60
-Phase : 3
-Voltage : 380/ 460
-Application : Air Conditioning

Untuk keterangan lebih lanjut, silahkan download PDF ini :
