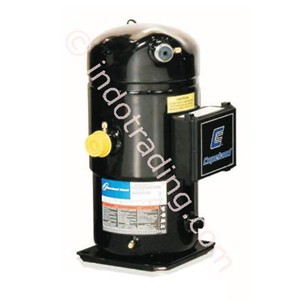

Kompressor Copeland Scroll Type Zr310kc-Twd-522
Hover to Zoom

11 Nov 2019
Thailand
1 unit
IDR CALL

Specification of

Model: Zr310kc-Twd

Technical Data
Displacement [M³/H]: 71,4
Sound Power [Dba]: 85
Sound Pressure Level [Db]: 74
Net Weight [Kg]: 160
Gross Weight [Kg]: 188
Oil Charge [Dm³]: 6,8
Maximum High Pressure [Bar]: 32
Maximum Standstill Pressure [Bar]: 20
Minimal Lowside Temperature [°C]: -35
Maximum Lowside Temperature [°C]: 52
Ped Category: 2


Electrical Data
Power Supply [V/~/Hz]: 380-420/3/50Hz
Locked Rotor Current [A]: 272
Max. Operating Current [A]: 52,0
Winding Resistance [Ω]: 0,5


Connections Inches
Suction Rotolock Valve Connection: 2 1/4" X 12 Un
Discharge Rotolock Valve Connection: 1 3/4" X 12 Un
Suction Connection With Supplied Sleeve: 1 5/8"
Discharge Connection With Supplied Sleeve: 1 3/8"
