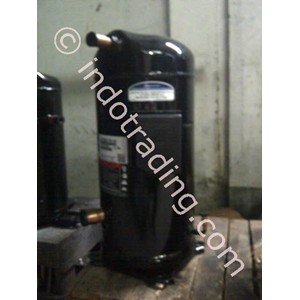

Kompressor Copeland Scroll Type Zr108kc-Tfd-420
Hover to Zoom

Last Updated
03 Aug 2019
Country Origin
Thailand
Minimum Order
1 unit

Specification of

Spesifikasi :

Performance
-Evap( ° F) / Cond( ° F) : 45/ 130 45/ 100
-Rg( ° F) / Liq( ° F) : 65/ 115 65/ 85
-Capacity ( Btu/ Hr) : 88100 106500
-Power ( Watts) : 7580 5310
-Current ( Amps) : 13.8 11.1
-Eer ( Btu/ Wh) : 11.6 20.0
-Mass Flow ( Lbs/ Hr) : 1280.0 1325.0

-Sound Power( Dba) : 71 Ave 76 Max
-Vibration ( Mils( Peak-Peak) ) : 2.0 Ave 3.0 Max

Record Date : 2007-12-06

Mechanical
-Number Of Cylinders : 0
-Bore Size ( In) : 0.0
-Stroke ( In) : 0.0
-Displ ( In^ 3/ Rev) : 8.721
-Displ ( Ft^ 3/ Hr) : 878.1523

-Overall Length ( In) : 10.38
-Overall Width ( In) : 11.23
-Overall Height ( In) : 21.0
-Mounting 9.48 Length ( In) : 7.5
-Mounting Width( In) : 7.5
-Mounting Height ( In) : 21.75*

-Suction Size ( In) : 1 3/ 8 Stub
-Discharge Size ( In) : 7/ 8 Stub
-Initial Oil Charge ( Oz) : 110
-Oil Recharge ( Oz) : 106
-Net Weight ( Lbs) : 132.0
-Internal Free Volume ( In^ 3) : 809.0
-Horsepower : 9.0
-Overall Compressor Height On Copeland Brand Product' S Specified
Mounting Grommets.

Electrical
-Lra-High* : 111
-Lra-Low* : 100
-Mcc ( Amps) : 24.2
-Rpm : 2900
-Max Operating Current : 16.8
-Rla( = Mcc/ 1.4; Use For Contactor Selection) : 17.3
-Rla ( = Mcc/ 1.56; Use For Breaker & Wire Size Selection) : 15.5
-Ul File No. : Sa-2337
-Ul File Date : 27-Sep-1996
-Csa File No. : Lr3104c

Alternate Applications
-Refrigerant : R407c
-Frequency( Hz) : 50Hz
-Phase : 3
-Voltage : 380/ 420
-Application : Air Conditioning Spesifikasi :

Performance
-Evap( ° F) / Cond( ° F) : 45/ 130 45/ 100
-Rg( ° F) / Liq( ° F) : 65/ 115 65/ 85
-Capacity ( Btu/ Hr) : 88100 106500
-Power ( Watts) : 7580 5310
-Current ( Amps) : 13.8 11.1
-Eer ( Btu/ Wh) : 11.6 20.0
-Mass Flow ( Lbs/ Hr) : 1280.0 1325.0

-Sound Power( Dba) : 71 Ave 76 Max
-Vibration ( Mils( Peak-Peak) ) : 2.0 Ave 3.0 Max

Record Date : 2007-12-06

Mechanical
-Number Of Cylinders : 0
-Bore Size ( In) : 0.0
-Stroke ( In) : 0.0
-Displ ( In^ 3/ Rev) : 8.721
-Displ ( Ft^ 3/ Hr) : 878.1523

-Overall Length ( In) : 10.38
-Overall Width ( In) : 11.23
-Overall Height ( In) : 21.0
-Mounting 9.48 Length ( In) : 7.5
-Mounting Width( In) : 7.5
-Mounting Height ( In) : 21.75*

-Suction Size ( In) : 1 3/ 8 Stub
-Discharge Size ( In) : 7/ 8 Stub
-Initial Oil Charge ( Oz) : 110
-Oil Recharge ( Oz) : 106
-Net Weight ( Lbs) : 132.0
-Internal Free Volume ( In^ 3) : 809.0
-Horsepower : 9.0
-Overall Compressor Height On Copeland Brand Product' S Specified
Mounting Grommets.

Electrical
-Lra-High* : 111
-Lra-Low* : 100
-Mcc ( Amps) : 24.2
-Rpm : 2900
-Max Operating Current : 16.8
-Rla( = Mcc/ 1.4; Use For Contactor Selection) : 17.3
-Rla ( = Mcc/ 1.56; Use For Breaker

Performance

Br /

Untuk keterangan lebih lanjut, silahkan download PDF ini :
