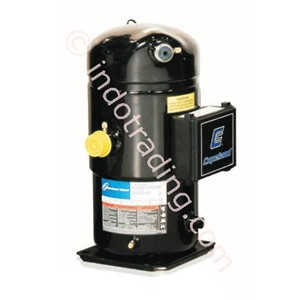

Kompressor Copeland Scroll Type Zr190kce-Tfd-522

Specification of Kompressor Copeland Scroll Type Zr190kce-Tfd-522

Model: Zr190kce-Tfd

Technical Data
Displacement [M³/H]: 43,3
Sound Power [Dba]: 82
Sound Pressure Level [Db]: 71
Net Weight [Kg]: 66
Oil Charge [Dm³]: 3,3
Maximum High Pressure [Bar]: 32
Maximum Standstill Pressure [Bar]: 20
Minimal Lowside Temperature [°C]: -35
Maximum Lowside Temperature [°C]: 52
Ped Category: 2

Electrical Data
Power Supply [V/~/Hz]: 380-420/3/50Hz
Locked Rotor Current [A]: 174
Max. Operating Current [A]: 34,0
Winding Resistance [Ω]: 0,8

Connections Inches
Suction Connection With Supplied Sleeve: 1 3/8"
Discharge Connection With Supplied Sleeve: 7/8"
