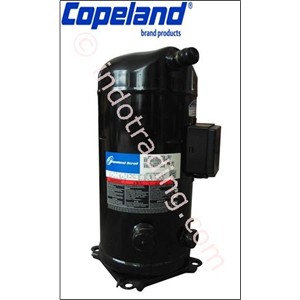

Kompressor Copeland Scroll Type Zr144kc-Tfd-522
Hover to Zoom

04 Feb 2020
Thailand
1 unit
IDR CALL

Specification of

Spesifikasi

Performance
-Evap( ° F) / Cond( ° F) : 45/ 130 45/ 100
-Rg( ° F) / Liq( ° F) : 65/ 115 65/ 85
-Capacity ( Btu/ Hr) : 120000 140000
-Power ( Watts) : 10100 7200
-Current ( Amps) : 17.7 13.6
-Eer ( Btu/ Wh) : 11.9 19.5
-Mass Flow ( Lbs/ Hr) : 1750.0 1810.0
-Sound Power( Dba) : 76 Ave 81 Max
-Vibration ( Mils( Peak-Peak) ) : 3.0 Ave 4.5 Max
-Record Date : 2008-11-17

Mechanical
-Number Of Cylinders : 0
-Bore Size ( In) : 0.0
-Stroke ( In) : 0.0
-Stroke ( In) : 11.645
-Displ ( Ft^ 3/ Hr) : 1172.581

-Overall Length ( In) : 10.38
-Overall Width ( In) : 11.23
-Overall Height ( In) : 21.0
-Mounting Length ( In) : 7.5
-Mounting Width( In) : 7.5
-Mounting Height ( In) : 21.75*

-Suction Size ( In) : 1 3/ 8 Stub
-Discharge Size ( In) : 7/ 8 Stub
-Initial Oil Charge ( Oz) : 110
-Oil Recharge ( Oz) : 106
-Net Weight ( Lbs) : 132.0
-Internal Free Volume ( In^ 3) : 809.0
-Horsepower

* Overall Compressor Height On Copeland Brand Product' S Specified
Mounting Grommets.

Electrical
-Lra-High* : 118.0
-Lra-Half Winding :
-Lra-Low* : 110.0
-Rla( = Mcc/ 1.4; Use For Contactor Selection) : 22.1
-Rla ( = Mcc/ 1.56; Use For Breaker & Wire Size Selection) : 19.9
-Mcc ( Amps) : 31.0
-Rpm : 2900
-Max Operating Current : 22.3
-Ul File No. : Sa-2337
-Ul File Date : 27-Sep-1996
-Csa File No. : Lr3104c
-* Low And High Refer To The Low And High Nominal Voltage Ranges For Which The Motor Is Approved.

Alternate Applications
-Refrigerant : R-22 Hcfc
-Frequency( Hz) : 50/ 60
-Phase : 3
-Voltage : 380/ 440
-Application : Air Conditioning
