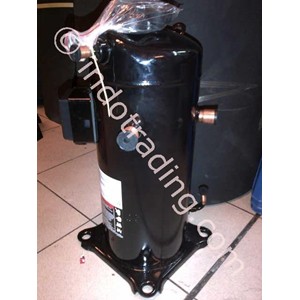

Kompressor Copeland Scroll Type Zr72kc-Tfd-420

Specification of Kompressor Copeland Scroll Type Zr72kc-Tfd-420

Spesifikasi :

Performance
-Evap( ° F) / Cond( ° F) : 45/ 130 45/ 100
-Rg( ° F) / Liq( ° F) : 65/ 115 65/ 85
-Capacity ( Btu/ Hr) : 56500 69000
-Power ( Watts) : 5150 3520
-Current ( Amps) : 9.1 6.5
-Eer ( Btu/ Wh) : 11.0 19.6
-Mass Flow ( Lbs/ Hr) : 825.0 855.0

-Sound Power( Dba) : 71 Ave 76 Max
-Vibration ( Mils( Peak-Peak) ) : 2.0 Ave 3.0 Max

Record Date : 2005-04-15

Mechanical
-Number Of Cylinders : 0
-Bore Size ( In) : 0.0
-Stroke ( In) : 0.0
-Displ ( In^ 3/ Rev) : 5.983
-Displ ( Ft^ 3/ Hr) : 602.4522

-Overall Length ( In) : 9.48
-Overall Width ( In) : 9.71
-Overall Height ( In) : 17.75
-Mounting 9.48 Length ( In) : 7.5
-Mounting Width( In) : 7.5

-Suction Size ( In) : 7/ 8"
-Discharge Size ( In) : 1/ 2"
-Initial Oil Charge ( Oz) : 60
-Oil Recharge ( Oz) : 56
-Net Weight ( Lbs) : 85.0
-Internal Free Volume ( In^ 3) : 248.0
-Horsepower : 6.0
-Overall Compressor Height On Copeland Brand Product' S Specified
Mounting Grommets.

Electrical
-Lra-High* : 74.0
-Lra-Low* : 67.0
-Mcc ( Amps) : 14.0
-Rpm : 2900
-Max Operating Current : 13.0
-Rla( = Mcc/ 1.4; Use For Contactor Selection) : 10
-Rla ( = Mcc/ 1.56; Use For Breaker & Wire Size Selection) : 9
-Ul File No. : Sa-2337
-Ul File Date : 26-Jul-1993
-Csa File No. : Lr3104c

Alternate Applications
-Refrigerant : R407c
-Frequency( Hz) : 50Hz
-Phase : 3
-Voltage : 380/ 420
-Application : Air Conditioning
