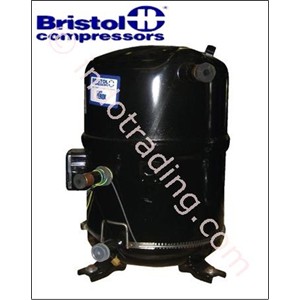

Kompressor Bristol Type H2ng244dref
Hover to Zoom

Last Updated
06 Aug 2019
Minimum Order
1 unit

Specification of Kompressor Bristol Type H2ng244dref

Technical Specifications
Soun D Power Oil Charg E (Cc ) Weight
Initial Charges Re Charge Net (Kg) Ship (Kg)
6624 6151 116.57 122.02
Voltage Phase Hertz
380/415 3 50
Nominal Performance Data @ 50Hz
Ari
(380V)
Capacity (Watts) 58,500
Motor Input (Watts) 20,220
Amps 36.5
Cop 2.9
Efficiency (%)
Rating Condition (Oc)
Evaporating Temp 7.2
Condensing Temp 54.4
Ambient Temp 35
Liquid Temp 46.1
Return Gas Te Mp 18.3
Mechanical Data
Bore X Stroke (Cm) 5.558X3.018 Speed (Rpm) 2950
Displacement (Cc/Rev) 146.4 Iprv Setting Δp(Kgs/Cm2) 28 - 35
Displacement (M3/Hr) 25.9 Refrig. Chg. Lmt. (Kgs) 9
Electrical Data
Rla 36.5 U.L. File Sa5470 Motor Res. In Ohms (° C ) ± 5%
Lra (1St Winding) N/A Ce Approval Yes T1-T3 (C-R) T1-T2 (C-S) T2-T3 (S-R)
Lra (Full Winding) 190 Ccc Approval Yes 0.60 0.60 0.60
Mcc 56
Voltage Range 342 - 457
Protector Type Pilot Duty Crankcase Heate R
Mod Ule Volta Ge Optio Ns Watts 95 Bristol P/N 241230
24V Module, Bristol P/N 241379 Recommended Values
120V Module, Bristol P/N 241380 1 5/8 Suction, Bristol P/N 250526
230V Module, Bristol P/N 241381 1 1/8 Discharge, Bristol P/N 250527
