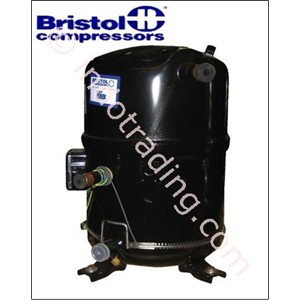

Kompressor Bristol Type H25g144dbee

Rp. CALL
Last Updated
21 Sep 2021
Minimum Order
1 unit

Specification of Kompressor Bristol Type H25g144dbee


Technical Specifications

Soun D Power Oil Charg E (Oz ) Weight

Initial Charges Re Charge Net (Lbs) Ship (Lbs)

96 80 167.00 176.00

Voltage Phase Hertz

380/415 3 50

Nominal Performance Data @ 50Hz

Ari B-Point Chee R Heat Pump

(380V) (380V) (380V) (380V)

Capacity (Watts) 116,700 139,900 151,500 99,500

Motor Input (Watts) 11,550 10,250 9,600 9,050

Amps 21.6 19.4 18.4 17.4

Cop 10.1 13.7 15.8 11.0

Efficiency (%)

Rating Condition (Oc)

Evaporating Temp 45 45 45 45

Condensing Temp 130 110 100 110

Ambient Temp 95 95 95 95

Liquid Temp 115 95 85 95

Return Gas Te Mp 65 65 65 50

Mechanical Data

Bore X Stroke (In) 2.188X1.334 Speed (Rpm) 2950

Displacement (In3/Rev) 10.032 Iprv Setting Δp(Psig) 450 - 550

Displacement (Ft3/Hr) 1027.5 Refrig. Chg. Lmt. (Lbs) 10

Electrical Data

Rla 21.6 U.L. File Sa5470 Motor Res. In Ohms (° C ) ± 5%

Lra (1St Winding) N/A Ce Approval Yes T1-T3 (C-R) T1-T2 (C-S) T2-T3 (S-R)

Lra (Full Winding) 80 Ccc Approval Yes 0.84 0.84 0.84

Mcc 34.5

Voltage Range 342 - 457

Protector Type Internal Line Break Crankcase Heate R

Mod Ule Volta Ge Optio Ns Watts Wrap Around - 70 Bristol P/N 2Tutco 02-4152-07S

24V Module, Bristol P/N N/A Recommended Values

120V Module, Bristol P/N N/A 1 5/8 Suction, Bristol P/N 250558

230V Module, Bristol P/N N/A 1 1/8 Discharge, Bristol P/N 250507


Lihat Selengkapnya

Untuk keterangan lebih lanjut, silahkan download PDF ini :
