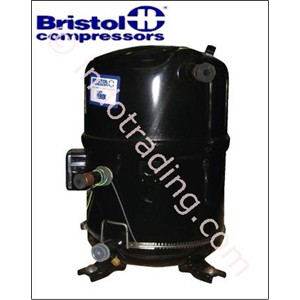

Kompressor Bristol Type H2bg094dbee

Rp. CALL
Last Updated
21 Sep 2021
Minimum Order
1 unit

Specification of Kompressor Bristol Type H2bg094dbee

Technical Specifications
Soun D Power Oil Charg E (Cc ) Weight
Initial Charges Re Charge Net (Kg) Ship (Kg)
2839 2366 58.06 62.60
Voltage Phase Hertz
380/415 3 50
Nominal Performance Data @ 50Hz
Ari
(380V)
Capacity (Watts) 21,200
Motor Input (Watts) 7,020
Amps 12.0
Cop 3.0
Efficiency (%)
Rating Condition (Oc)
Evaporating Temp 7.2
Condensing Temp 54.4
Ambient Temp 35
Liquid Temp 46.1
Return Gas Te Mp 18.3
Mechanical Data
Bore X Stroke (Cm) 5.558X2.301 Speed (Rpm) 2950
Displacement (Cc/Rev) 111.6 Iprv Setting Δp(Kgs/Cm2) 32 - 39
Displacement (M3/Hr) 19.8 Refrig. Chg. Lmt. (Kgs) 5
Electrical Data
Rla 12 U.L. File Sa5470 Motor Res. In Ohms (° C ) ± 5%
Lra (1St Winding) N/A Ce Approval Yes T1-T3 (C-R) T1-T2 (C-S) T2-T3 (S-R)
Lra (Full Winding) 72 Ccc Approval Yes 1.83 1.83 1.83
Mcc 18
Voltage Range 342 - 457
Protector Type Internal Line Break Crankcase Heate R
Mod Ule Volta Ge Optio Ns Watts Wrap Around - 70 Bristol P/N Tutco 02-4152-07S
24V Module, Bristol P/N N/A Recommended Values
120V Module, Bristol P/N N/A 1 5/8 Suction, Bristol P/N 250508
230V Module, Bristol P/N N/A 1 1/8 Discharge, Bristol P/N 250507
